Metal Detection Gate
Created with Pixso. 33 Zones Touch Screen Metal Detection Gate , High Strength Materials Fireproof Walk Through Metal Detector

33 Zones Touch Screen Metal Detection Gate , High Strength Materials Fireproof Walk Through Metal Detector

Tên thương hiệu: RONA
Số mẫu: 33 khu vực
MOQ: 1pc
giá bán: negotiable
Thời gian giao hàng: 15-20 ngày
Điều khoản thanh toán: T/T, Liên minh phương Tây
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
ISO,CE
Kích thước bên ngoài:
2200 (h) x 850 (w) x 500 (d) mm
Điện áp hoạt động:
AC 220V, 50-60 Hz
Độ nhạy khu vực:
1000 cấp độ (có thể điều chỉnh)
Tỷ lệ vượt qua:
60 người/phút
chi tiết đóng gói:
Hộp carton +xuất khẩu hộp gỗ
Khả năng cung cấp:
500pcs/1 tháng
Làm nổi bật:

Touch Screen Metal Detection Gate

,

33 zones Walk Through Metal Detector

,

Fireproof Walk Through Metal Detector

Mô tả sản phẩm

33-Touch Screen Metal Detection Gate Walk Through Metal Detector high strength materials fireproof



Advantages

High metal detection sensitivity; strong anti-interference ability; multiple detection areas, each area can be individually set the sensitivity ; Using high-strength materials, it can be fireproof, anti-corrosion,

shock-proof, etc.; background environmental interference that can be monitored in real time.



Product Features

  • Multi-zone technology: 6, 18, and 33 detection zones, each with adjustable sensitivity. High-brightness LED indicators indicate the alarm location, precisely locating hidden contraband.
  • Color LCD: Power-up self-diagnosis and fault display. The 7-inch color LCD features an easy-to-understand graphical interface for debugging.
  • Superior enclosure protection: Utilizing double 9mm high-density composite panels, the security door maintains stability and boasts IP53-rated protection.
  • Optional detection for ferrous and precious metals.
  • Electromagnetic interference protection: Utilizing DSP digital signal processing technology, the device automatically scans and detects mechanical and electromagnetic interference at the installation site, adapting to the operating environment and providing high immunity to both electromagnetic and mechanical interference. Periodic calibration is unnecessary, significantly improving interference immunity.
  • Operating frequency bands: Up to 100 operating frequency bands allow multiple devices to operate side-by-side within 10 cm of each other without interference.
  • Sensitivity calibration: Zone sensitivity calibration is displayed. When calibrating zone detection sensitivity, the indicator for the currently adjusted zone illuminates, notifying the operator of the current zone.
  • Detection zone sensitivity: Sensitivity levels for individual zones range from 0 to 999. Built-in high and low sensitivity programs allow for quick and easy adjustment, and all detection program parameters can be configured and modified at any time.
  • Alarm functions: Alarm light and sound, adjustable settings.
  • Password protection: Password protection restricts operation to authorized personnel, enhancing safety.
  • Human safety: Safe for pacemaker wearers, pregnant women, and magnetic media.
  • Provides a 232 communication interface and an Ethernet port, with optional networking.
  • Two switching signals: available for gate control.





Basic Parameters



Overall Sensitivity: 500 levels (adjustable)



Regional Sensitivity: 1000 levels (adjustable)



Application Scenarios: 60



Operating Frequency: 1-99



Power Consumption: <20 W



Throughput Rate: 0.4m/s-1.2m/s



Operating Voltage: 100-240VAC, 50-60 Hz



Operating Temperature: -10°C-+45°C

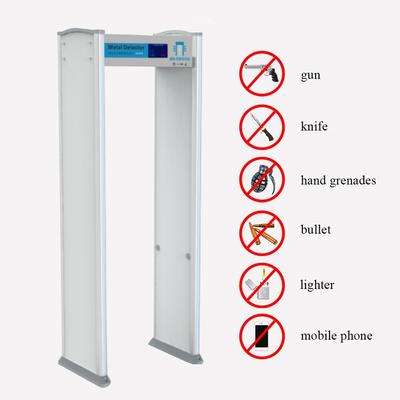

33 Zones Touch Screen Metal Detection Gate , High Strength Materials Fireproof Walk Through Metal Detector 0

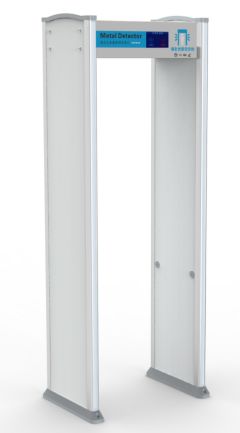

33 Zones Touch Screen Metal Detection Gate , High Strength Materials Fireproof Walk Through Metal Detector 1
