Stainless Steel Access Control Turnstiles

Stainless Steel Access Control Turnstiles

  • Stainless Steel Access Control Turnstiles
  • Stainless Steel Access Control Turnstiles
  • Stainless Steel Access Control Turnstiles

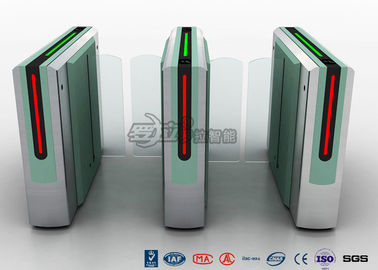

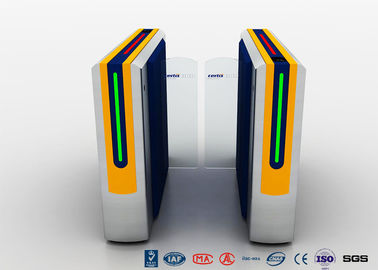

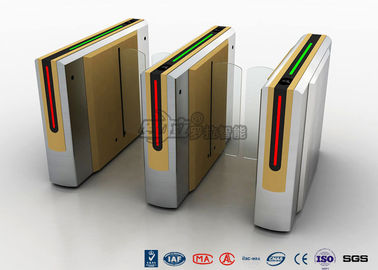

Stainless Steel Access Control Turnstiles
Thông tin chi tiết sản phẩm:
Nguồn gốc: China
Hàng hiệu: RONA
Chứng nhận: CE / ISO9001
Số mô hình: RNCF2066 / RNCF2066S
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 unit
Giá bán: negotiation
chi tiết đóng gói: carton and wooden packing
Thời gian giao hàng: 7-15 ngày làm việc
Điều khoản thanh toán: T/T,
Khả năng cung cấp: 2000 chiếc mỗi tháng
Tiếp xúc
Chi tiết sản phẩm
Vật liệu khung: thép không gỉ 304# Kích thước: L1400mm * W300mm * H1023mm
Vật liệu trượt: Kính cường lực Kéo dài chiều dài trượt: 230 ~ 235mm
Điện áp: AC220V ± 10%, 50Hz ± 10% Động cơ điều khiển: Động cơ DC Brush
Tốc độ đi qua: 30 người / phút Thời gian trung bình để thất bại: tối thiểu 5 000 000
Điểm nổi bật:

Kiểm soát truy cập Turnstiles

,

access control barriers

Stainless Steel Sliding Gate Turnstile / Access Control Turnstiles With CE certification



PRODUCT CLASSIFICATIONS:

It may be divided according to the combination type of core mechanism: single-core mechanism and dual-core mechanism.



-> Single-core mechanism: RNCF2066

The sliding barrier only equipped with single-core in the cabinet as shown in Fig.1, usually be used in single lane or multi-lane applications.

-> Dual-core mechanism: RNCF2066S

The sliding barrier equipped with independent dual-core in the cabinet as shown in Fig.2, usually be used in multi-lane applications.



TECHNICAL SPECIFICATIONS:

Product Name

Sliding Gate Turnstile

Model

RNCF2066

RNCF2066S

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

1400mm*300mm*1023mm (default)

Material of flap

Tempered glass

Stretching-out flap length

230~235mm

Height of Sliding Gate

max of 1500mm (optional)

Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC brush motor

Main-board voltage

12V DC

In-built Infrared

6 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal or DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m.

Warranty

12 months

Certificate

CE



APPLICATIONS:

Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.



STANDARD FEATURES & FUNCTIONS:

  • -> Obstacle safety detection with audible alarm, to convenient for users to maintain and use.

  • -> The running status of device can be set up through pressing the built-in small keyboard of the main control board.

  • -> With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.

  • -> Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian accidents / injuries.

  • -> Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.

  • -> Acoustic signal for announcement of unauthorised use.

  • -> Barrier locked in closed position to prevent force intrusion, until a valid access control signal is received.

  • -> Time out reclosing feature, if never detect anyone pass thru the barrier, will auto reclose at defined value. The standard default is 10 seconds. (1 to 60 second adjustable);

  • -> Emergency-escape function: When power failure, barrier will auto open to meet the request of fire protection. Also barrier will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).

  • -> Standard fire alarm input interface, requires N.C normally close contact.

  • -> The turnstile system can easily integrates with the 3rd party equipment with read facilities, such as biometric reader, consumption system, ESD system and access control system etc.

  • -> The turnstile system can be hooked up with multiple reader equipments together. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card, fingerprint and face detection etc.

  • -> Operation model: Both direction can be set as controlled mode, free mode or disable model, two or one direction can be controlled by switch- button or access controller. (Free model means automatic open by infrared beam detecting, controlled model means use valid access controller signal to open, disable model means forbidding anyone pass thru).

  • -> Direction indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.

  • -> With normally open & normally closed working mode available.

  • -> Through the management computer to realize remote control and management.

  • -> Approved CE certificate



DIMESNION SPECIFICATIONS:


Stainless Steel Access Control Turnstiles 0


PROJECTS:

Stainless Steel Access Control Turnstiles 1



FACTORY:

Stainless Steel Access Control Turnstiles 2


EXHIBITION:
Bar Code Ticketing System Access Control Tripod Turnstile Gate of 304 stainless steel

CONTACT US:
Shenzhen Rona Intelligent Technology Co., Ltd is a Chinese manufacturing firm located in Shenzhen. When you are ready to find out how we can service your needs, use the information listed here to reach our sales and service office. Monday to Friday: 8:30am - 6:00pm (UTC/GMT +8). We look forward to hearing from you.

Head office: A603, 6F, Yousong Technology Building, E Ring 1st Rd, Loghua Town, Bao'an, Shenzhen, China, 518109
Factory: 3F&4F, Building C, Longlian Industrial Zone, Zhonghua Rd, Longhuan Town, Bao'an, Shenzhen, China, 518109

Contact Person: Ms. Sophia Wey
Cel: +86-15986833719
Email: export@szrona.cn
Skype: rona.export
Tel: +86-755-88853586 ext 8039
Fax: +86-755-88853586 ext 8002
