Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System

Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System

security turnstiles

barrier turnstile

Place of Origin:

China

Hàng hiệu:

RONA

Chứng nhận:

CE / ISO9001

Model Number:

RNCF F8008

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Vật chất:
Thép không gỉ 304
Kích thước tiêu chuẩn:
1600mm (L) * 200mm (W) * 1050mm (H)
Động cơ lái xe:
Động cơ chổi than DC24V
Chiều dài xoay:
262 ~ 450mm
Vật liệu đu:
Thép không gỉ hoặc acrylic
Tốc độ vượt qua:
25-30 người / phút
IP:
54
Môi trường làm việc:
-30oC 70oC
Môi trường:
Trong nhà hoặc ngoài trời
cuộc sống làm việc:
3 triệu
Giao diện nhập liệu:
Tín hiệu mức 12V hoặc độ rộng xung> 100ms Xung 12V, dòng điện> 10mA
Bảo hành:
12 tháng
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity
1 pair
Giá bán
negotiation
Packaging Details
Export Wooden Packing
Thời gian giao hàng
7-15 ngày làm việc
Payment Terms
, L/C, T/T
Khả năng cung cấp
2000 chiếc mỗi tháng
Mô tả sản phẩm

2016 newest Anti - Collision Walk Through Metal Swing Gate For Bus Station Card Reader System





Introduce of swing barrier gates

Swing barrier is an ideal passenger access management device produced by our company after years research and development. Our standard product, made of 304 stainless steel, integrating with mechanism, electron, microprocessor and various identification technology, is able to achieve access intelligent control and management by configuring all kinds of identification devices. Direction indicator and well-extended LED counting display.



Bridge swing turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



Swing barrier gates Standard features & functions

1, Barriers made from stainless steel, acrylic glass, etc;

2,Mechanical Anti-Pinch structure enable motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay

3, Automatic counting indicating passenger's number.

4, Human base model indication function, real time displaying, improve the passing rate and convenient maintain

5, Anti pinch function, barriers auto open when power shut, insure user safety.

6, Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage

7, Super combination capacity, adjustable model on site

8, Barriers move speed auto adjust with card reader, problem self-recovery, error calls function which could convenient users and operators

8, Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.

10, Turned up-coverage is water-proof and easy maintain.

11, Open direction adjustable even though power off

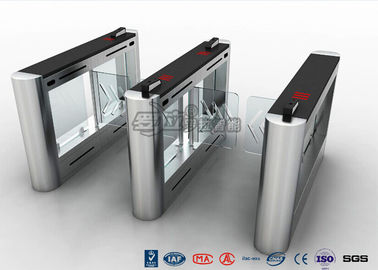

Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System 0



Basic information of swing barrier gates

Housing material 304 grade stainless steel(thickness 1.5mm)
Length of arm 600mm(standard)/500-900mm(option)
Arm's rotation angle 180 degree
Swing direction single or bi-direction
Driving electromotor DC Brush electromotor 50W/24V
Normal useful life 5 million times
Working voltage AC220V±10%V/50±10%Hz,AC110V±10%/50Hz±10%
Temperature -10C - 50C
Working environment Indoor ,outdoor(with a tent over)
Transit speed 40 persons/min(open often) 25-30 person/min(close often)
Open/close time 2~3s
Starting time after power on 3s
Automatic reset time after fault 10s
Communication interface RS485 standard distance less than 1200 meters
Input interface Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current > 10mA
Relative humidity <= 90% no condensation

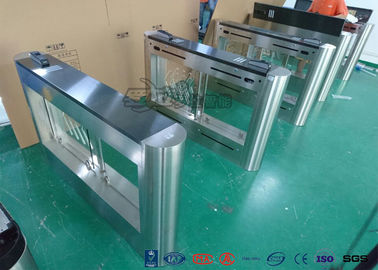

Anti - Collision Walk Through Metal Swing Barrier Gate Bus Station Card Reader System 1
