Retractable Optical Turnstile Security Systems Electric For Airports Access

Retractable Optical Turnstile Security Systems Electric For Airports Access

security turnstiles

barrier turnstile

Place of Origin:

China

Hàng hiệu:

RONA

Chứng nhận:

CE / ISO9001

Model Number:

Customized

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Nguyên vật liệu::
Thép không gỉ 304 #
Chiều rộng đoạn văn:
550mm
break:
AC220V ± 10%, 50Hz ± 10%
Cổng giao tiếp::
RS232 / RS485
Cổng đầu vào::
relay dry contact signal; rơle tín hiệu tiếp xúc khô; +12V level signal and pulse w
Môi trường làm việc::
Trong nhà / ngoài trời (có mái che mưa)
Độ ẩm tương đối:
ít hơn 95% không ngưng tụ
Thời gian trung bình để thất bại:
5 000 000
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity
1 Lane
Giá bán
negotiation
Packaging Details
carton and wooden packing
Thời gian giao hàng
7-15 ngày làm việc
Payment Terms
T/T,
Khả năng cung cấp
2000 chiếc mỗi tháng
Mô tả sản phẩm

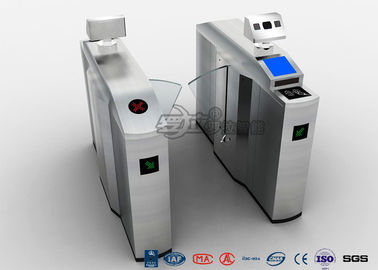

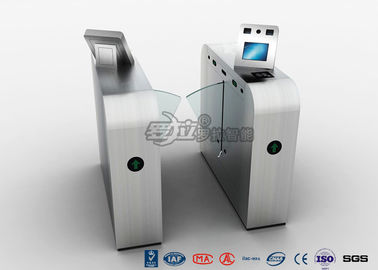

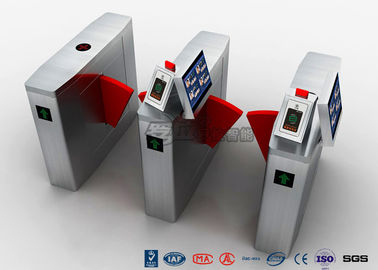

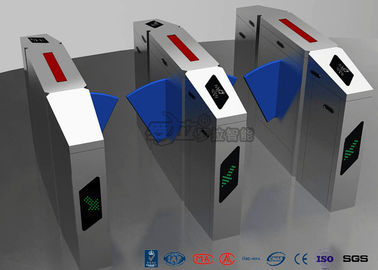

Retractable Optical Turnstile Security Systems Electric For Airports Access​





PRODUCT DESCRIPTIONS:

The retractable flap turnstile controls pedestrian access between public and secure areas. The turnstile lane uses an array of optical sensors to determine the number and direction of persons passing through the lane. The turnstile uses a retractable flap to block the pedestrian’s path.


The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, Token /ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.




SPECIFICATIONS:

Model

Customized

Customized

Classifications

Single-core mechanism

Dual-core mechanism

Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional)

Thickness of ply

1.7mm

Finish

brushed surface, polishing surface or anti-fingerprint surface (optional);

Size (L*W*H)

Customized

Material of flap

different color Acrylic flap available or Red Soft flapper optional

Stretching-out flap length

230~235mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.



Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC Stepper motor

Main-board voltage

12V DC

In-built Infrared

7 pairs/lane

Passing speed

30 persons/min

Passage Width

550mm

Opening / closing time

0.6 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

10 seconds

Mean time to failure

min. 5 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet

Warranty

12 months



APPLICATIONS:
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc.



KEY WORDS:

Flap Barrier, half height turnstile, waist height turnstile, falp turnstile, turnstile, turnstiles, access control turnstile, access control barrier, sensor gate, sensor barrier, panel barrier, wing barrier, wing gate, wing turnstile, speed gate, access control system, perimeter protection barrier.
